Bosfa industrial battery Co., Ltd.

Products

Code	Nominal Voltage (V)	Capacity (AH)	Dimension								Weight		Terminal
			Length		Width		Height		Total Height		Kg	Lb	Type	Position
			mm	in	mm	in	mm	in	mm	in	Kg	Lb	Type	Position

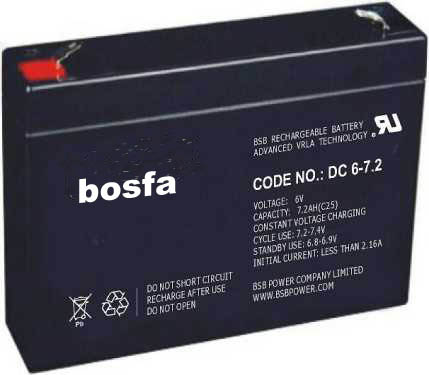

DC6-7.2 image	6	7.2	151	5.94	34	1.34	94	3.7	100	3.94	1.2	2.65	F1	C
DC6-7.5 image	6	7.5	151	5.94	34	1.34	94	3.70	100	3.94	1.3	2.87	F1	C

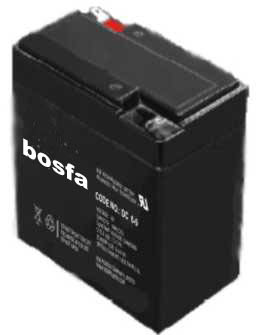

DC6-9 image	6	9	98	3.86	57	2.24	115	4.53	115	4.53	1.62	3.57	F1	B
DC6-12 image	6	12	151	5.94	50	1.97	94	3.7	100	3.94	1.7	3.75	F2	C
DC6-100 image	6	100	194	7.64	170	6.69	207	8.15	210	8.27	15.5	34.2	M6	A

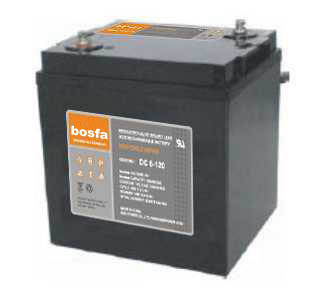

DC6-120 image	6	120	194	7.64	170	6.69	207	8.15	210	8.27	16	35.28	M6	A

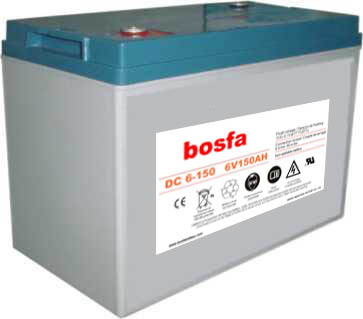

DC6-150 image	6	150	260	10.2	180	7.09	247	9.72	251	9.88	21.5	47.4	M8	A

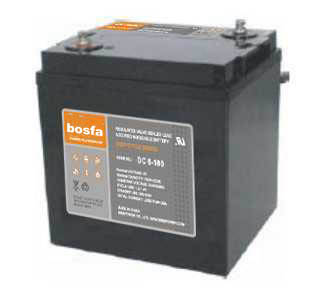

DC6-180 image	6	180	306	12.05	168	6.61	222	8.74	226	8.9	24	52.9	M8	A

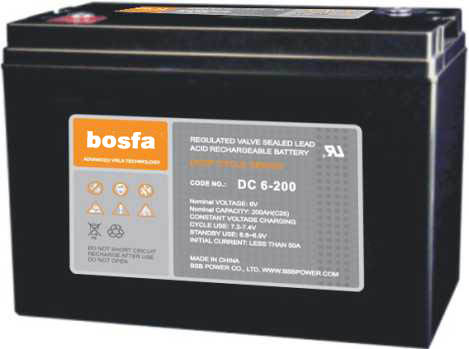

DC6-200 image	6	200	323	12.72	178	7.01	224	8.82	228	8.98	29	64	M8	A

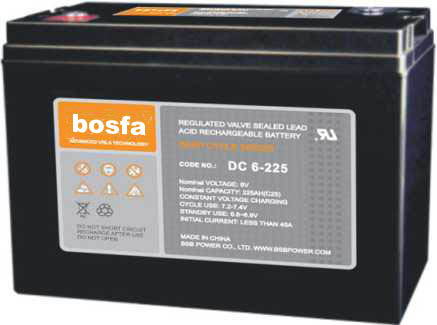

DC6-225-B image	6	225	243	9.57	188	7.40	275	10.83	275	10.83	32	70.56	M8	B
DC6-225-A image	6	225	320	12.6	176	6.93	226	8.9	231	9.09	32	70.56	M8	A
DC12-5 image	12	5	90	3.54	70	2.76	101	3.98	107	4.21	1.6	3.53	F1	C

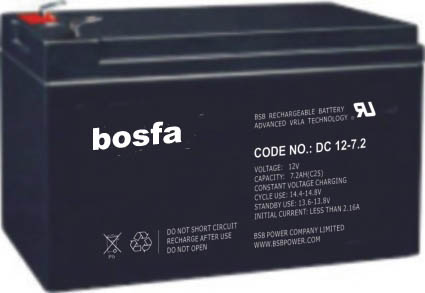

DC12-7.2 image	12	7.2	151	5.94	65	2.56	95	3.74	101	3.98	2.1	4.63	F1	F
DC12-7.5 image	12	7.5	151	5.94	65	2.56	95	3.74	101	3.98	2.2	4.85	F1	F
DC12-9 image	12	9	151	5.94	65	2.56	111	4.37	117	1.61	2.5	5.51	F1	F

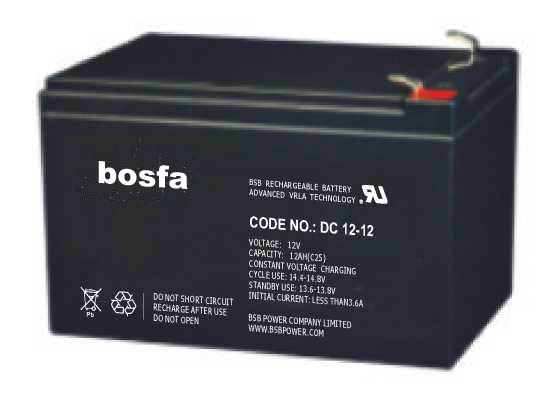

DC12-12 image	12	12	151	5.94	98	3.86	95	3.74	101	3.98	3.5	7.72	F2	F
DC12-20 image	12	20	181	7.13	76	2.99	167	6.57	167	6.57	5.8	12.8	T5	D

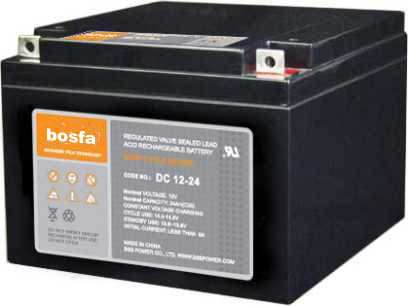

DC12-24 image	12	24	175	6.89	166	6.54	125	4.92	125	4.92	7.5	16.5	T5	D

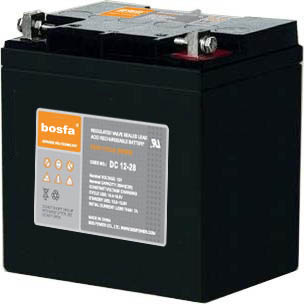

DC12-28 image	12	28	165	6.5	126	4.96	175	6.89	182	7.17	8	17.67	M6	D

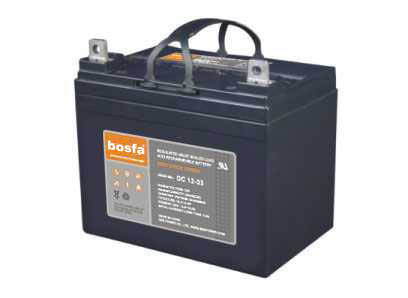

DC12-33 image	12	33	195	7.68	130	5.12	159	6.26	183	7.2	11.3	24.92	T7	C

[First] [Prev] [Next] [Last] 1/2 page Go 1 2 page
